AROSEN POWER

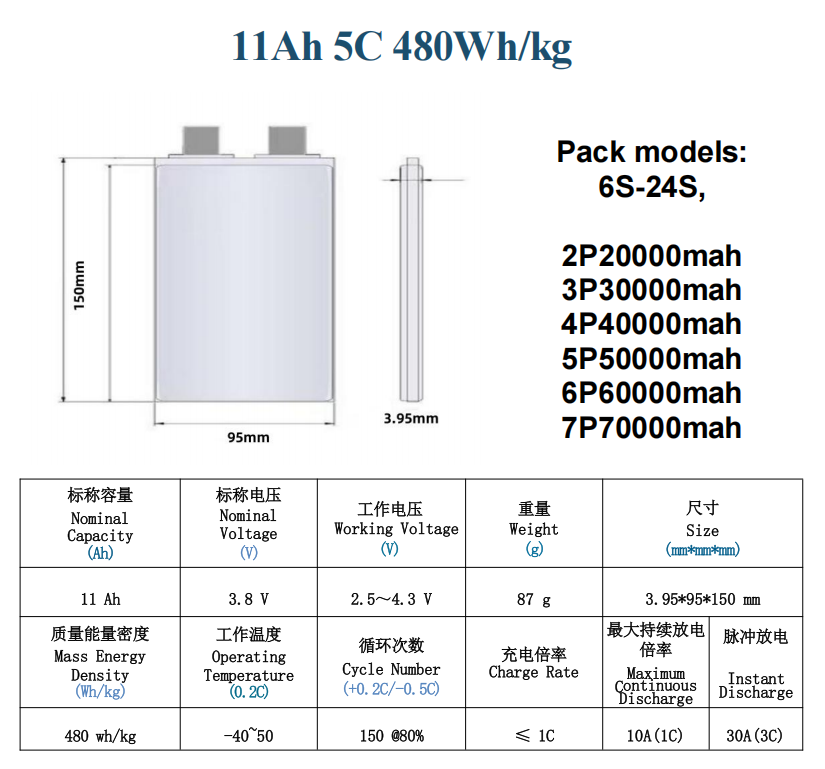

Battery-Cell 3.8V 11Ah 480wh/kg 3C-5C
Battery-Cell 3.8V 11Ah 480wh/kg 3C-5C
| Parameter | Value |
|---|---|
| Specification | 11Ah · 5C · 480Wh/kg |
| Nominal Capacity | 11 Ah |
| Nominal Voltage | 3.8 V |
| Working Voltage | 2.5 – 4.3 V |
| Weight | 87 g |
| Size | 3.95 × 95 × 150 mm |
| Mass Energy Density | 480 Wh/kg |
| Operating Temperature | -40 – 50 ℃ |
| Cycle Number (+0.2C/-0.5C) | 150 @ 80% |
| Charge Rate | ≤ 1C |
| Maximum Continuous Discharge | 10 A (1C) |
| Instant Discharge | 30 A (3C) |
| Series Configuration | 6S – 24S |
| Parallel Cells | 2P – 7P |
| Pack Capacity (2P/3P/4P/5P/6P/7P) | 20000 / 30000 / 40000 / 50000 / 60000 / 70000 mAh |
Please contact us for detailed pricing.
